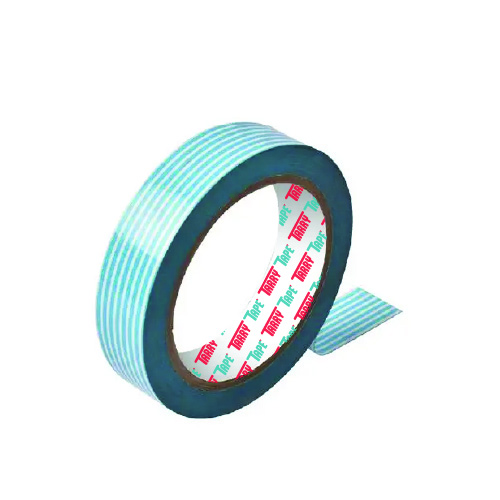

Component Holding Tape
Component Holding Tape is a specialized adhesive tape designed to temporarily secure components during manufacturing, assembly or transportation processes. It helps hold small parts, electronic components and assemblies in position until the final bonding or installation is completed.
The tape provides reliable adhesion and controlled holding strength while allowing easy removal without damaging delicate components or surfaces.
Technical Specifications
| Property | Specifications |
| Carrier Material | Polyester Film / Tissue / Foam (depending on grade) |
| Adhesive Type | Acrylic Pressure Sensitive Adhesive |
| Total Thickness | 80 – 200 Microns (depending on construction) |
| Adhesion to Steel | 6 – 12 N / 25 mm |
| Release Liner | Silicone Coated Paper / Film |
| Temperature Resistance | Up to 100°C |
| Colors Available | Transparent / White / Custom |
Key Features
Reliable temporary holding during assembly
Clean removal without residue
Suitable for delicate components and surfaces
Good dimensional stability and conformability
Compatible with die-cut and automated assembly processes
Available in different adhesive strengths depending on application
Application
Temporary holding of electronic components
Assembly line component positioning
Automotive component fixing during assembly
Holding parts during machining or processing
Industrial production and manufacturing setups
