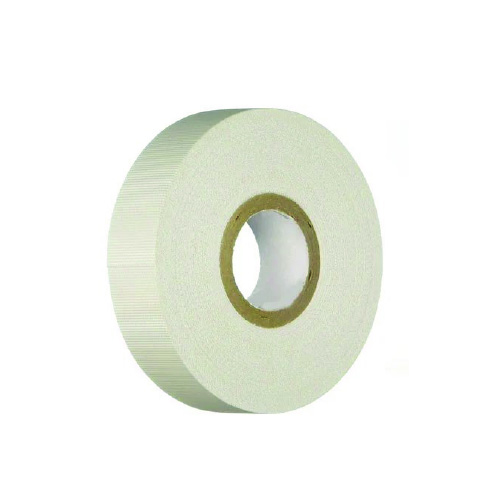

Glass Cloth Tape
Glass Cloth Tape is a high-temperature resistant adhesive tape made with woven fiberglass cloth backing coated with pressure-sensitive adhesive. The fiberglass construction provides excellent mechanical strength, dimensional stability and heat resistance.
This tape is widely used for electrical insulation, coil wrapping and protection of cables or components exposed to high temperatures in industrial environments.
Technical Specifications
| Property | Specifications |
| Backing Material | Woven Fiberglass Cloth |
| Adhesive Type | Silicone / Acrylic Pressure Sensitive Adhesive |
| Total Thickness | 180 – 300 Microns |
| Adhesion to Steel | 5 – 8 N / 25 mm |
| Elongation | 5 – 8 % |
| Temperature Resistance | Up to 250°C (depending on adhesive type) |
| Colors Available | White / Natural |
| Tensile Strength |
150 – 250 N / 25 mm |
Key Features
Excellent heat resistance for high-temperature applications
Strong fiberglass cloth backing for durability
Good electrical insulation properties
High mechanical strength and tear resistance
Resistant to chemicals and abrasion
Suitable for industrial insulation and protection applications
Application
Coil wrapping and transformer insulation
Motor insulation systems
High-temperature cable protection
Electrical equipment insulation
Furnace and heating equipment protection
Industrial maintenance and repair
