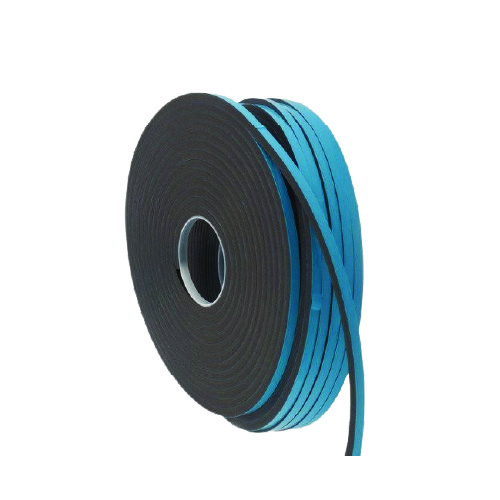

Spacer Tape
Spacer Tape is a double-sided adhesive tape designed to create controlled spacing or gaps between two surfaces during assembly. It is commonly manufactured using foam, polyester or other carrier materials coated with pressure-sensitive adhesive on both sides.
The tape provides consistent thickness, reliable bonding and cushioning, making it suitable for industrial assembly, glazing systems, electronics components and structural mounting applications.
Technical Specifications
| Property | Specifications |
| Carrier Material | Foam / Polyester / Acrylic Foam (depending on grade) |
| Adhesive Type | Acrylic Pressure Sensitive Adhesive |
| Total Thickness | 0.3 – 3.0 mm (depending on application) |
| Adhesion to Steel | 8 – 15 N / 25 mm |
| Density | Medium to High Density |
| Temperature Resistance | Up to 120°C |
| Colors Available | White / Black / Grey |
| Release Liner | Silicone Coated Paper / Film |
Key Features
Maintains consistent spacing between surfaces
Double sided adhesive for secure bonding
Good dimensional stability and thickness control
Provides cushioning and vibration damping
Easy die-cutting for custom shapes
Suitable for industrial assembly applications
Application
Glass glazing and window systems
Electronics component mounting
Automotive trim assembly
Signage and display mounting
Industrial panel assembly
Vibration isolation and cushioning
